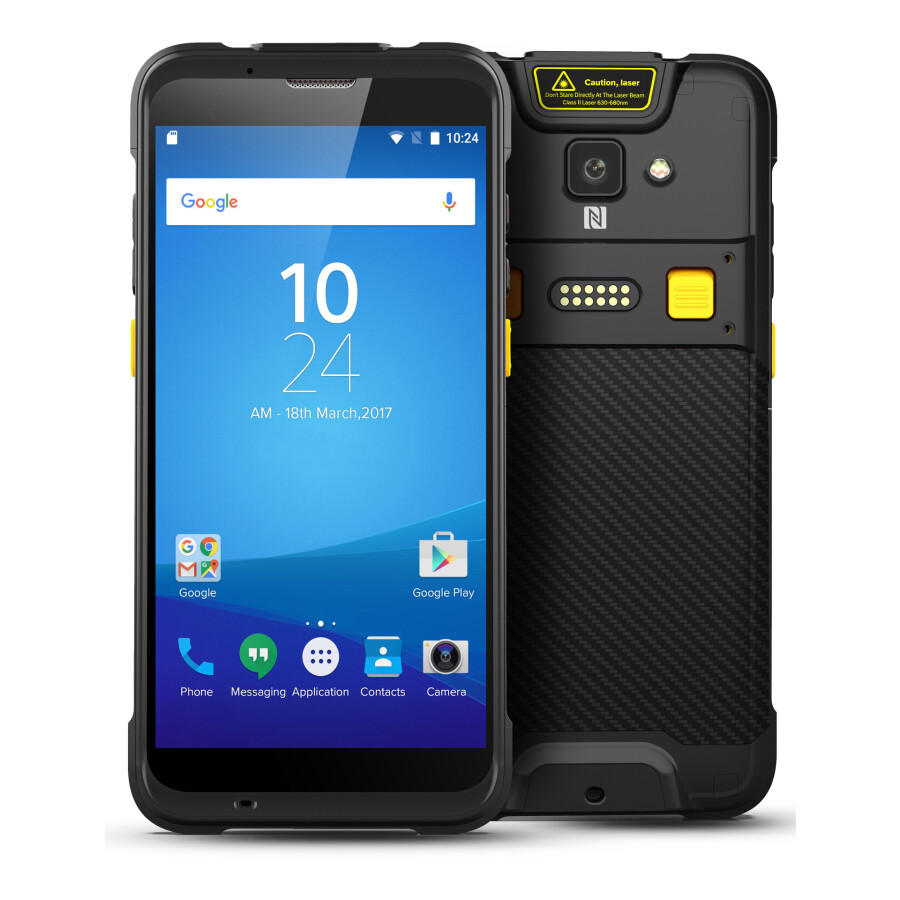

CHAINWAY C66 Mobile Terminal

Mobile Computer (Android 11/13)

Features

  • 5.5‑inch Android handheld, large HD display and slim rugged body
  • Removable 4420 mAh battery with QC3.0 quick charge and optional 5200 mAh pistol/booster battery
  • Rugged IP65 design with approx. 1.5 m drop resistance
  • Optional 1D/2D barcode, NFC, UHF RFID, fingerprint and volume measurement

Technology

  • Android 11/13, Qualcomm octa‑core 2.0 GHz CPU, 3GB+32GB or 4GB+64GB, up to 256GB Micro SD
  • 4G, Wi‑Fi, Bluetooth, GPS/AGPS, GLONASS, BeiDou
  • 5.5‑inch FHD display with Gorilla Glass
  • Optional built‑in UHF RFID (Impinj Gen2X) or support for R6 UHF sled for extended read range
Category: Tag:

Description



As a high‑performance Chainway RFID reader and mobile terminal, it acts as the ideal hardware backbone in Million Tech’s RFID solutions, which have already delivered remarkable success stories in Smart Education and Smart Healthcare projects.

Additional information

Dimensions

160.0 x 76.0 x 15.5 / 17.0mm / 6.3 x 2.99 x 0.61 / 0.67 in
Weight

287 g / 10.12 oz. (device with battery);
297 g / 10.47 oz. (device with battery, Fingerprint / Built-in UHF)
Display

5.5-inch high definition full display (18:9) , IPS 1440 x 720
Touch Panel

Multi-touch panel, gloves and wet hands supported
Power

Removable main battery (normal version:4420 mAh ; With fingerprint / built-in UHF version: 5200mAh )

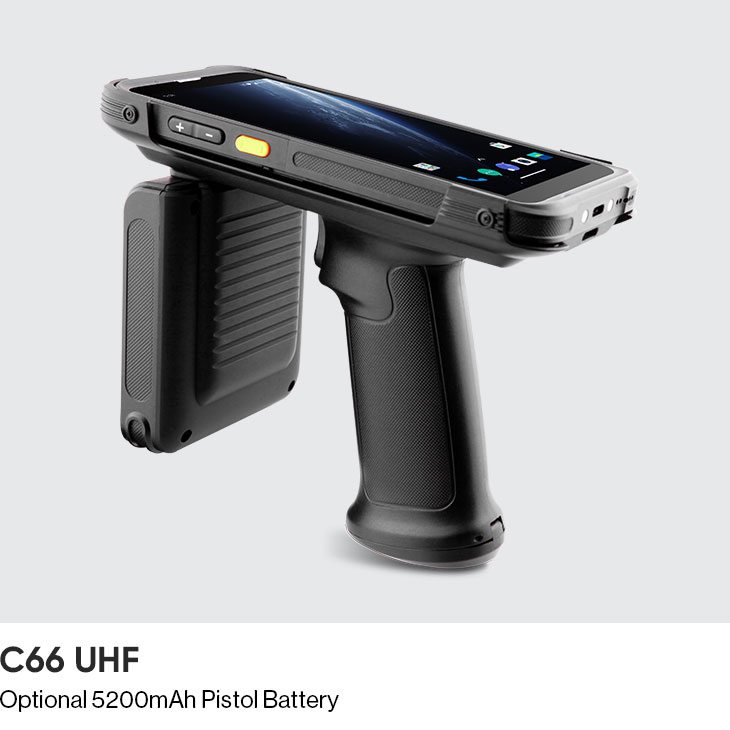

5200 mAh optional pistol battery, support QC 3.0 and RTC
Standby: up to 490 hours (only main battery ; WiFi: up to 470h; 4G: up to 440h)
Continuous use: over 12 hours (depending on user environment)
Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Notification

Sound, LED indicator, vibrator
Interfaces

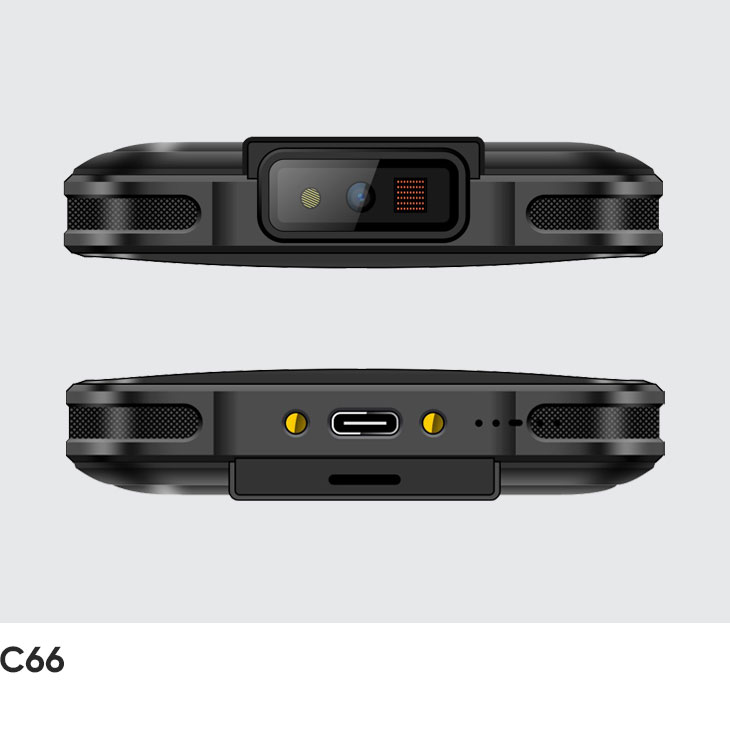

USB Type-C, USB 3.1, OTG, extended thimble
Card slot

1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio

2 microphones，1 for noise cancellation；1 speaker；receiver
Keypad

1 power key, 2 scan keys, 2 volume keys
Sensors

Accelerometer sensor, light sensor, proximity sensor
gravity sensor, gyroscope sensor(optional)
geomagnetic sensor(optional),
WLAN

Support 802.11 a/b/g/n/ac/ax-ready/d/e/h/i/k/r/v,2.4G/5G dual-band, IPV4, IPV6, 5G PA;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels: 2.4G(channel 1~13), 5G(channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;
Security and Encryption: WEP,WPA/WPA2-PSK(TKIP and AES),WAPI- PSK—EAP-TTLS,EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS, PEAP-GTC, WPA3-Enterprise,etc.
WWAN

2G: 850/900/1800/1900 MHz
3G: CDMA EVDO: BC0
WCDMA: 850/900/1900/2100MHz
TD-SCDMA: A/F(B34/B39)
4G: B1, B3, B5, B7, B8, B20, B38, B39, B40, B41
Bluetooth

Bluetooth 5.1
Vo-LTE

Support Vo-LTE HD video voice call
GNSS

GPS/AGPS, GLONASS, BeiDou,Galileo,internal antenna
Operating System

Android 11/13; GMS, 90-day security updates, Android Enterprise Recommended, Zero-Touch, FOTA, Soti MobiControl, SafeUEM supported. Committed support for a future upgrade to Android 18 pending feasibility
SDK

Chainway Software Development Kit
Language

Java
Tool

Eclipse / Android Studio
CPU

Octa-core, 2.0GHz
RAM+ROM

3GB + 32GB / 4GB + 64GB / 6GB + 64GB / 6GB + 128GB
Expansion

Supports up to 256GB Micro SD (TF) card
Operating Temp.

-20 ℃~+50 ℃
Storage Temp.

-40 ℃~+70 ℃
Humidity

5% RH – 95% RH non condensing
Drop Specification

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range;
Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber boot
MIL-STD-810H(SGS Test): Multiple 1.22 M drops (at least 20 times) to the plate across the operating temperature range
Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing

IP65 per IEC sealing specifications, IP67 optional
ESD

±15KV air discharge, ±8KV conductive discharge
Search Engine

Based on Impinj E Series chips
Impinj Gen2X

Supported
Output Power

1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate

1300+ tags / sec (Circular Polarized)
Max Read Range

28m (Impinj MR6 tag, size 70 x 15mm)
28m (Impinj M750 tag, size 70 x 15mm)
32m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fingerprint

TLK1NC02
Rear Camera

Rear 13 MP Autofocus with flash
Facial Recognition lSO19794-5 Compatible
Frequency

13.56MHz
Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips

M1 card (S50, S70), CPU card, NFC tags etc.
Range

2-4cm
