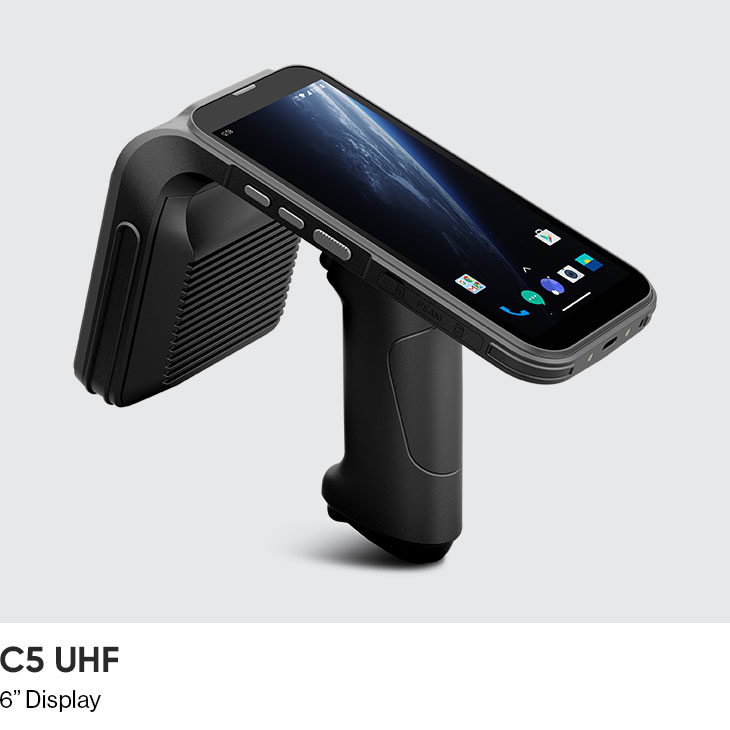

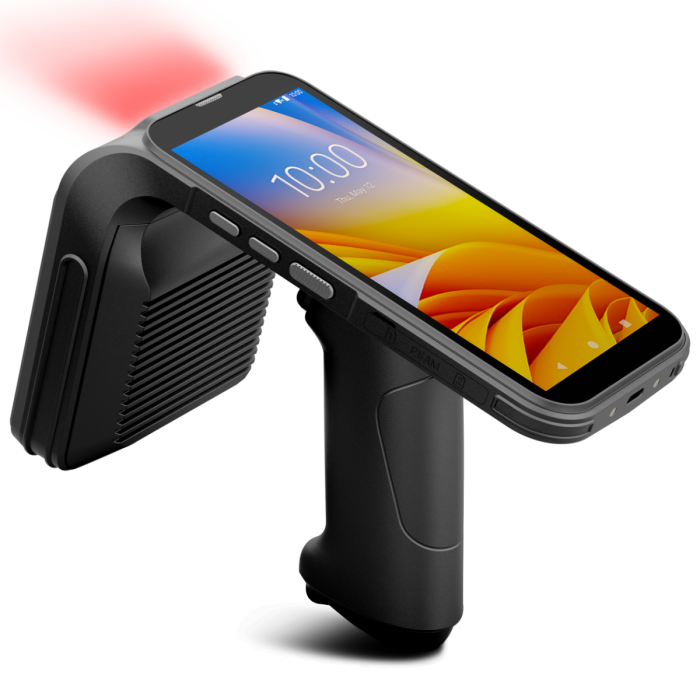

CHAINWAY C-5 UHF RFID Reader

UHF RFID Reader (Android 11/13)

Features

  • Integrated UHF RFID handheld with ergonomic pistol grip
  • Long read range over 30 m with suitable UHF tags (model‑ and tag‑dependent)
  • Rugged IP65 housing with multiple 1.5 m drops
  • High‑capacity removable pistol battery (6700 mAh / 13,400 mAh) with hot‑swap backup cell

Technology

  • UHF module based on Impinj E‑Series with Impinj Gen2X, EPCglobal Gen2 / ISO18000‑6C
  • Up to 1300+ tags per second with circularly polarized antenna
  • 4G LTE, dual‑band Wi‑Fi
  • Android 11/13
Category: Tag:

Description

Additional information

Dimensions

178.8 x 96.5 x 128.4mm / 7.03 x 3.80 x 5.06in
Weight

626g / 22.08oz. (device with battery)
Display

5-inch (Fingerprint); 1280 x 720 / 6-inch; 2160 x 1080
Touch Panel

Multi-touch panel, gloves and wet hands supported; Corning Gorilla Glass
Power

6700mAh / 13400mAh removable pistol battery
Built in 100mAh backup battery, supporting battery hot swap
Notification

Sound, LED indicator, vibrator
Interfaces

USB 2.0 Type-C, OTG, Type-C headphones supported
Card slot

2 slots for PSAM card (optional); 1 slot for Nano SIM card, 1 slot for Nano SIM or TF card
Audio

1 microphone; 1 speaker; 1 receiver
Keypad

1 power key, 2 scan keys, 1 user-defined key, 2 volume keys (+/-)
Sensors

Gravity sensor, proximity sensor, light sensor, geomagnetic sensor (optional), gyroscope (optional)
WLAN

802.11 a / b / g / n / ac, 2.4G / 5G dual-band, 2*2 MIMO antennas (Optional)
WWAN

2G: GSM (B2 / B3 / B5 / B8)
3G: WCDMA (B1 / B2 / B4 / B5 / B8)
CDMA2000 ECDO: BC0
4G: B1 / B2 / B3 / B4 / B5 / B7 / B8 / B12 / B17 / B20 / B28A / B28B / B38 / B39 / B40 / B41
Bluetooth

5.0
Vo-LTE

Support
GNSS

GPS / AGPS, GLONASS, BeiDou, Galileo
Operating System

Android 11/13, upgradable to Android 16.
SDK

Chainway Software Development Kit
Language

Java
Tool

Eclipse / Android Studio
CPU

Octa-core, 2.3GHz
RAM+ROM

3GB + 32GB
4GB + 64GB (Optional)
Expansion

Supports up to 512GB Micro SD (TF) card
Operating Temp.

-20 °C to 50 °C / 4 °F to 122 °F
Storage Temp.

-40 °C to 70 °C / -40 °F to 158 °F
Humidity

5% RH – 95% RH (non condensing)
Drop Specification

Multiple 1.5m / 4.9ft. drops to the concrete across the operating temperature range
Tumble Specification

1000 x 0.5m / 1.64 ft. falls at room temperature
Sealing

IP65 per IEC sealing specifications
ESD

±15KV air discharge, ±8KV conductive discharge
2D Imager Scanner

CM60; Zebra: SE4710
1D Symbologies

UPC / EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS etc.
2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX) etc.
Engine

Based on Impinj E Series chips
Impinj Gen2X

Supported
Output Power

1W (30dBm, +5dBm to +30dBm adjustable)
2W Optional (33dBm, for Latin America, etc.)
Fastest Read Rate

1300+ tags / sec (Circular Polarized)
Max Read Range

30m (Impinj MR6 tag, size 70 x 15mm)
32m (Impinj M750 tag, size 70 x 15mm)
33m (Alien H3 Anti-Metal tag, size 130 x 42mm)
Fingerprint

TLK1NC02
Front Camera

5MP
Rear Camera

Rear 13MP Autofocus with flash
Frequency

13.56MHz
Protocol

ISO14443A / B, ISO15693, NFC-IP1, NFC-IP2, Impinj Prtoected Mode Supported etc.
Chips

M1 card (S50, S70), CPU card, NFC tags etc.
Range

2-4cm
