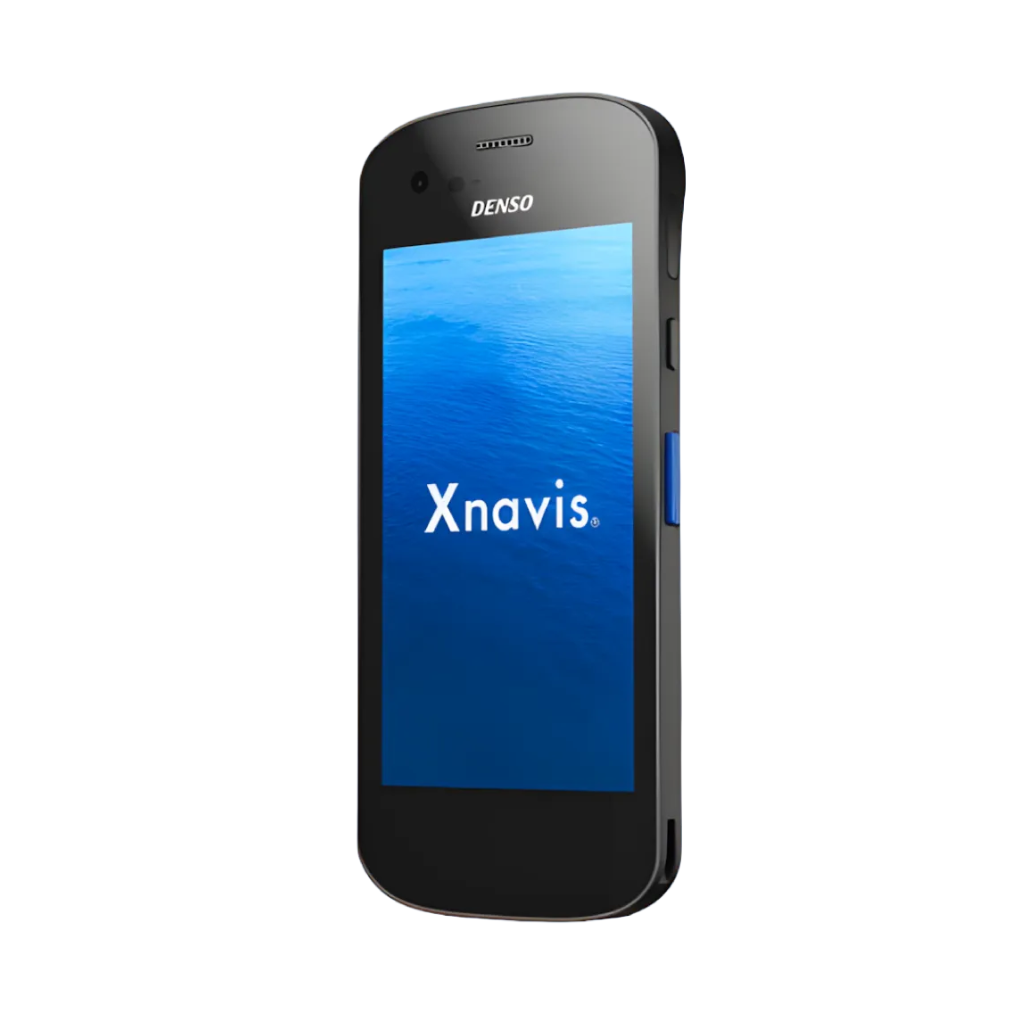

Denso X-N10/15

The ultra-slim and ultra-light 5.0-inch Handheld Terminal

Features

  • Ultra-thin 9.7mm and ultra-light 180g design for effortless use
  • Outstanding drop resistance with reinforced receiver hole structure
  • Long-term reliable operation with replaceable battery

Technology

  • High-speed 4G LTE (X-N15 model)
  • Android 13
  • Advanced scanning with rear camera and red LED
  • Supports rMQR code scanning

Additional information

Operating System

Android™ 13

CPU

Qualcomm® ARM® Octa core

RAM

8 GB

Flash ROM

128 GB (no external memory)

Screen size and resolution(1)

5.0-inch high-definition (1280×720 dots)

Display device

Dot matrix liquid crystal display (color)

Camera

13MP (Rear), 5MP (Front)

Reading method

Rear camera with red LED

Supported code

2D code, Barcode (Amer Read, Angle Read)

Key

3 Key (including power key) + 2 Trigger Key

Touch screen

Capacitive touch screen

Wireless WAN applicable standard

Supported: IEEE 802.11 a/b/g/n/ac
   FDD-LTE (4G) – Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 17, 19, 20, 25, 26, 28
   W-CDMA/UMTS/HSPA/HSPA+ (3G) – Bands 1, 2, 5, 6, 8, 19
   GSM/GPRS/EDGE (2G) – Bands 850, 900, 1800, 1900MHz

WWAN

(only X-N15) 4G LTE

SIM

(only X-N15) nano SIM, eSIM (DSDV support)

GNSS

(only X-N15) GPS, GLONASS, QZSS, BeiDou, Galileo, A-GPS

Bluetooth® connection

Bluetooth® Ver 5.1 / LE

NFC

ISO14443 Type A, B, FeliCa, ISO15693

USB

USB 3.1 (Type-C)

Sensor

Acceleration, gyro, geomagnetic field, illuminance, proximity

Drop durability

1.2 m (MIL-STD 810 H compliant)
1.5 m with protective case (MIL-STD 810 H compliant)

Protective class

IP65 and IP67

Battery

Approx. 2,900mAh, replaceable battery

Size

167 × 76 × 9.7 mm

Weight (including battery)

Approx. 180 g
