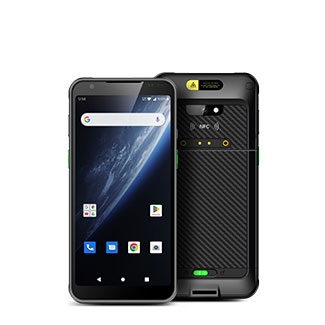

CHAINWAY MC50 5G Mobile Terminal

Mobile Computer (Android 12/14)

Features

  • 6‑inch 5G Android mobile computer, slim and rugged
  • Built‑in 1D/2D barcode scanner, NFC and dual cameras
  • 5000 mAh removable battery with quick charge
  • IP67 protection and 1.5 m drop resistance

Technology

  • Android 12/14, Snapdragon octa‑core, up to 6GB RAM / 128GB ROM
  • 6‑inch HD (1440 × 720) Gorilla Glass multi‑touch display
  • 5G/4G, Wi‑Fi, Bluetooth 5.1, GPS/AGPS, GLONASS, BeiDou, Galileo
  • USB‑C, dual SIM + TF slot, full sensor set (G, light, proximity, gyro, compass)
Category: Tag:

Description



As a high‑performance Chainway RFID reader and mobile terminal, it acts as the great hardware backbone in Million Tech’s RFID solutions, which have already delivered remarkable success stories in Smart Education and Smart Healthcare projects.

Additional information

Dimensions

161.0 x 77.8 x 15.5mm / 6.34 x 3.06 x 0.61in
Weight

280g-288g / 9.88oz-10.16oz. (device with battery)
Display

6-inch high definition display (18:9), 1440 x 720
Touch Panel

Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported
Power

5000mAh removable main battery, support QC3.0 and RTC
Notification

Sound, LED indicator, vibrator
Interfaces

USB Type-C, USB 3.1, OTG
Card slot

1 for SIM card, 1 for SIM or TF card
Audio

2 microphones, 1 for noise cancellation; 1 speaker; 1 receiver; 1 multifunctional key
Keypad

Power key, 2 scan keys, volume (+/-) keys
Sensors

G_sensor, proximity sensor, light sensor, geomagnetic sensor, gyroscope
WLAN

Support 802.11 a/b/g/n/ac/ax-ready, 2.4G/5G dual-band, IPV4, IPV6, 5G PA; 2×2 MU-MIMO;
Fast roaming: PMKID caching, 802.11r, OKC;
Operating Channels:
2.4G (channel 1~13),
5G (channel 36, 40, 44, 48, 52, 56, 60, 64, 100, 104, 108, 112, 116, 120, 124, 128, 132, 136, 140, 144, 149, 153, 157, 161, 165), Depends on local regulations
Security and Encryption: WEP, WPA/WPA2-PSK(TKIP and AES), WAPI-PSK—EAP-TTLS, EAP-TLS, PEAP-MSCHAPv2, PEAP-LTS,PEAP-GTC, WPA3-Enterprise, WPA3-Enhanced Open, WPA3 Easy Connect, WPA3-Personal, etc.
WWAN

2G: 850/900/1800/1900MHz
3G: 850/900/1900/2100MHz
4G: B1/B2/B3/B5/B7/B8/B20/B28A/B28B/B34/B38/B39/B40/ B41
5G: N1/N3/N8/N28/N41/N78/N79
Bluetooth

Bluetooth 5.1
Vo-LTE

Support Vo-LTE HD video voice call
GNSS

GPS / AGPS, GLONASS, BeiDou, Galileo, internal antenna
Operating System

Android 12/14; GMS&AER
SDK

Chainway Software Development Kit
Language

Java
Tool

Eclipse / Android Studio
CPU

Octa-core, 2.0GHz
RAM+ROM

4GB + 64GB / 6GB + 128GB (Optional) / 8GB + 128GB (Optional)
Expansion

Supports up to 256GB TF card
Operating Temp.

-4°F to 122°F / -20°C to +50°C
Storage Temp.

-40°F to 158°F / -40°C to +70°C
Humidity

5%RH – 95%RH non condensing
Drop Specification

Multiple 1.5m / 4.92ft. drops (at least 20 times) to the concrete across the operating temperature range
MIL-STD-810H(SGS Test): Multiple 1.5m drops (at least 20 times) to theplate across the operating temperature range
Tumble Specification

1000 x 0.5 m / 1.64 ft. falls at room temperature
Sealing

IP67 per IEC sealing specifications
ESD

±15KV air discharge, ±8KV conductive discharge
2D Scanner

Zebra：SE4710/SE4750/SE55；CM60
1D Symbologies

UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.
2D Symbologies

PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.
Front Camera

5MP
Rear Camera

16MP Autofocus with flash
NFC Frequency

13.56MHz
Protocol

ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.
Chips

M1 card (S50, S70), CPU card, NFC tags, etc.
Range

2-4cm
